Product Description

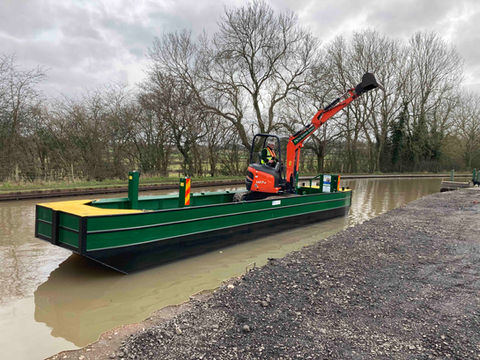

Perfect for dredging and piling operations, the Digger Hopper is a versatile pontoon designed for both excavator transport and on-water operation. Capable of carrying a 2.5-tonne excavator, this vessel provides a mobile working platform from which it can dig, excavate, drive piles, and dredge, putting the material into the large hold.
KEY FEATURES
Length: 40ft
Beam: 6ft 10in
Working Platform Length: 25ft
Draft: 300mm (unloaded), 600mm (loaded)
Max Machine Size: 2.5t (canopy only)
Carrying Capacity: 8 tonnes (materials)
Interchangeable floors for transport or platform use
INFORMATION SHEETS

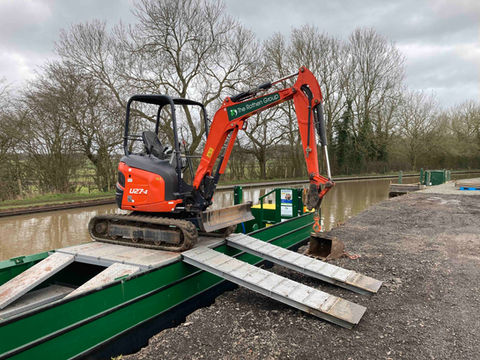

Unlike traditional digger pontoons, there’s no need to rotate sponsons, making this craft easier to navigate through narrow locks or under bridges. Once on-site, the excavator can track along the full 25ft working platform or be disembarked directly onto the bank.
Stability is a major issue when working on water. Four hydraulic stabiliser legs, powered by an onboard unit, descend to the canal or riverbed to provide a secure working platform. Each leg reaches 1.5 metres below the hull – and can be extended a further metre in deeper stretches of water.
Weighing just 9 tonnes and fully Hiab transportable, this mini digger pontoon can be rapidly deployed anywhere in the UK’s inland waterway network. The interchangeable deck panels even allow it to be converted into a standard materials hopper, offering a versatility not found in other vessels.
Whether you're supporting bankside works, operating in remote areas, or performing routine dredging, this small but mighty platform is your go-to solution.
Gallery
Use Case
Ideal for piling, Nicospan, dredging, and tight-access sites
Transport Method
Hiab lorry deliverable
Platform Type
Interchangeable floors for dual-use (machine or materials)
Operating Machine Reach
Up to 25ft
Stabilisers
4 hydraulic legs (1.5m depth, +1m extension available)
Carrying Capacity
2.5t excavator (canopy only) / 8t materials
Draft
300mm unloaded / 600mm loaded
Working Platform
25ft
Beam
6ft 10in
Length
40ft
LABEL
VALUE
Specifications
