Product Description

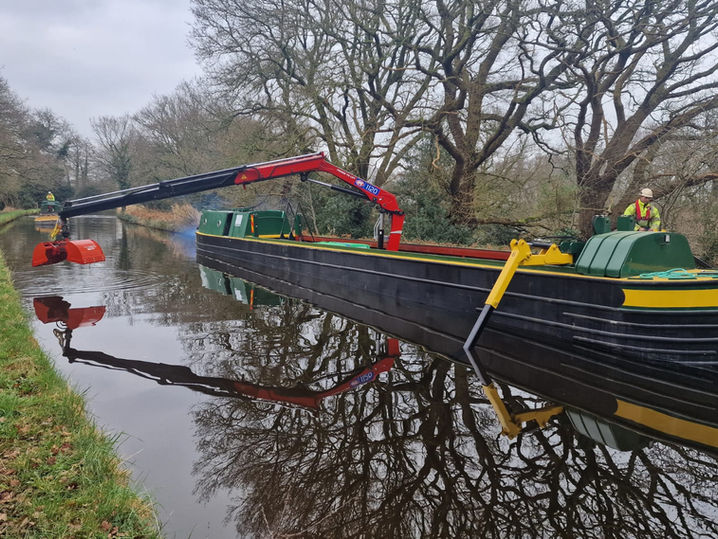

The 70ft Hiab crane & grab boat is a versatile platform built for the most heavy-duty canal works. It functions as a dredger, grab boat, pusher tug, and hopper - all in one self-sufficient vessel. Making it ideal for spot dredging, material transport, piling operations, and towpath works, even in hard-to-reach areas.
KEY FEATURES
70ft x 7ft
50ft hold length
20t carrying capacity
Fassi F40 Hiab (6.3m reach)
Hydraulic stabiliser legs
2 removable watertight skips
Powered, self-loading/unloading
Mobilised via crane & lorry
INFORMATION SHEETS
Powered and fully self-loading, the vessel is equipped with a Fassi F40 Hiab crane offering a 6.3m reach. It supports a wide range of attachments, including a clamshell bucket, hook, piling hammer, and post hole borer. It is well suited to loading, lifting, and precision placement.
Designed to handle both liquids and solids, the vessel includes two removable watertight skips for storing spoil, dredgings, or concrete, and transporting them to or from the site. With a 50ft hold and a 20-tonne carrying capacity, it can shift serious volumes of material with minimal support, essential for intensive maintenance and restoration operations.
To manage this capacity safely, hydraulic stabiliser legs anchor the vessel securely to the canal bed, allowing it to lift and store heavy material with greater stability.
Mobilised by crane and lorry, this vessel is easy to deploy across the waterway network, providing a high-impact, low-hassle solution for inland construction and maintenance.
Gallery
Transport Method
Crane and lorry
Power
Powered, self-loading and unloading
Material Handling
2 removable watertight skips
Stabilisers
Hydraulic stabiliser legs
Attachments
Hook, clamshell bucket, piling hammer, post hole borer
Crane Reach
6.3m
Crane Model
Fassi F40 Hiab crane
Carrying Capacity
20 tonnes
Hold Length
50ft
Beam
7ft
Length
70ft
LABEL
VALUE
Specifications
