Product Description

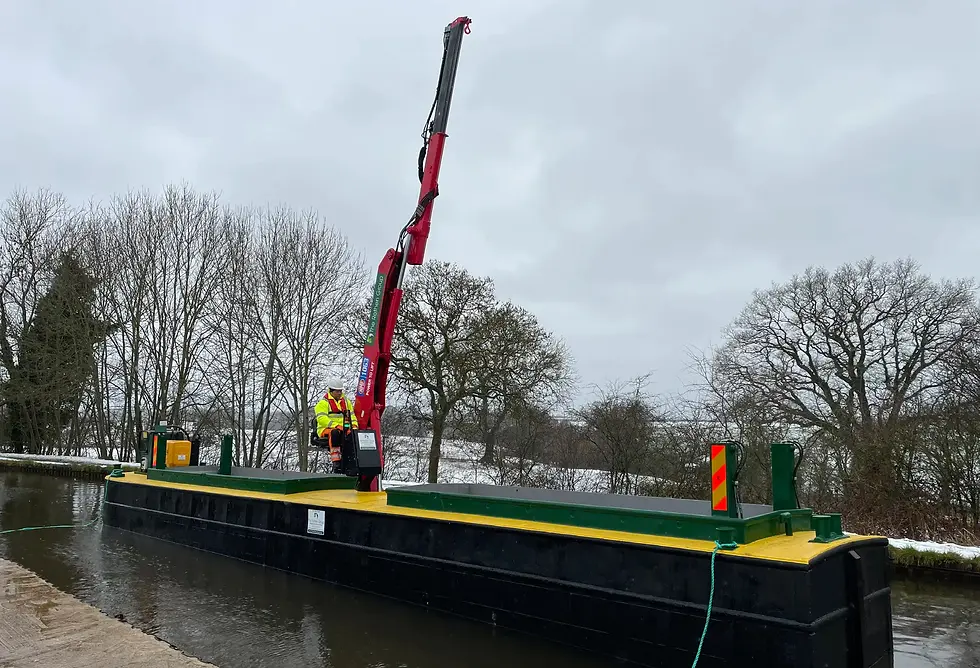

Fitted with a 10 t/m crane enabling 360° working area, the unpowered narrow beam crane hoppers offer the flexibility to get the job done. Ideal for all types of canal and river maintenance from dredging to towpath resurfacing.
KEY FEATURES
Length: 50ft (15.2m)
Width: 7ft (2.1m)
Carrying Capacity: Up to 14 tonnes
Top seat manual controls

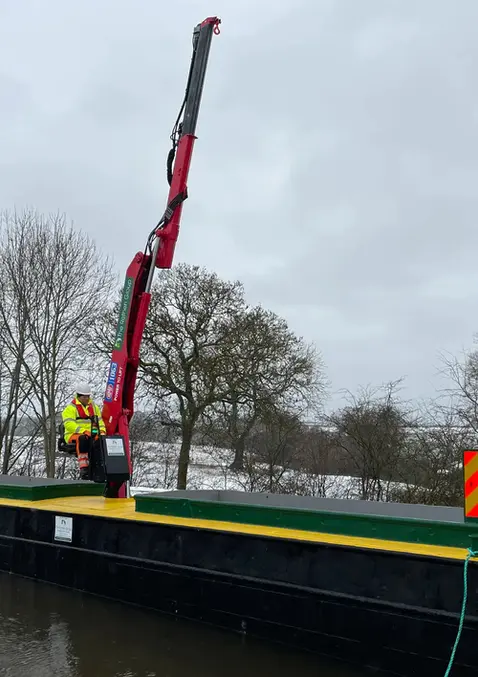

Centre mounted crane - 360° working area
Unpowered, road transportable
INFORMATION SHEETS
With a narrow beam construction, this hopper fits where space is limited. It can even fit through 70ft locks as one unit when working with The Rothen Group tug. Making it ideal for confined or restricted work environments.

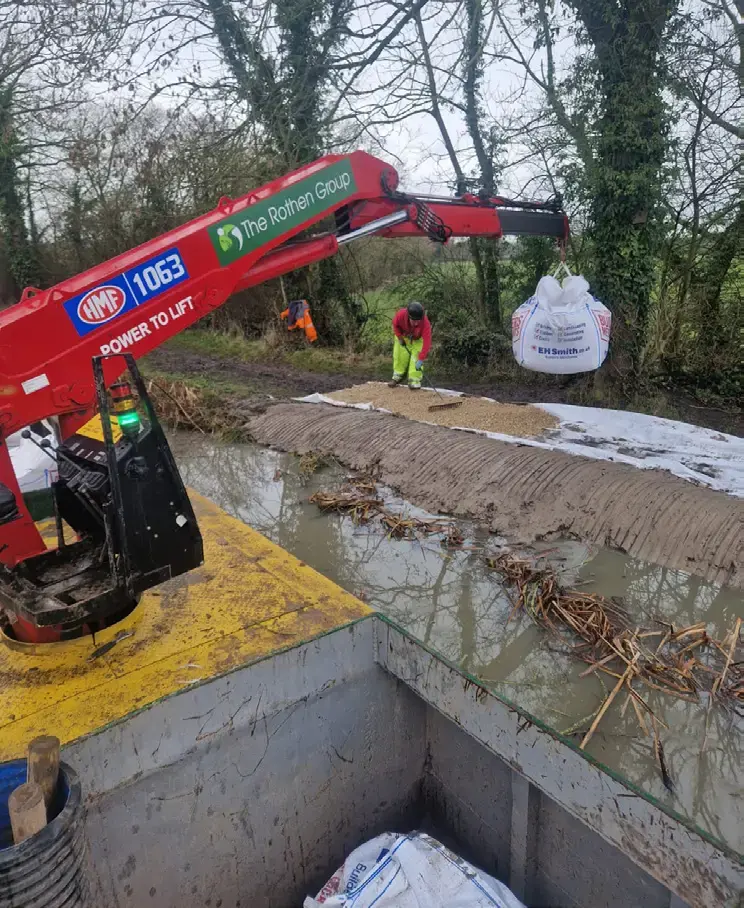

While unpowered it’s transportable by road for ease. Quick to set to work, the boat is fitted with third services pipework allowing it to run attachments such as clamshells, post drivers and piling hammers. With a carrying capacity of 14 tonnes and two two sealed internal tanks that can carry liquid materials including dredging and concrete. It’s also fully flexible with a robust construction to support the transportation of stone or piles.
The four hydraulic stabiliser legs complete with large foot plates sustain reduced ground pressure on canal beds. The wide positioning of the crane is designed for self-loading and discharge. It’s a smart choice for any project demanding strength and precision in restricted areas.
Gallery
Additional Features
Third service pipework for attachments
Lock Compatibility
Fits through 70ft locks (with TRG tug)
Transport Method
Road transportable
Tanks
Sealed internal tanks for liquids or dredgings
Stabilisers
4 hydraulic legs with wide foot plates
Crane Type
Centre-mounted 10t/m crane with 360° rotation
Crane Controls
Manual top-seat operation
Carrying Capacity
Up to 14 tonnes
Width
9ft 8in (3m)
Length
45ft (13.7m)
LABEL
VALUE
Specifications
